Flatback Tape

Product Flatback Tape

Feature
  • Long fiber flatback paper, strong pull, good stability, it is used generally to distinguish between
  • Low tack property which offers strong tensile strength and holding power
  • Cleanly removal after applied on a variety of surfaces
  • Temperature resistance can be up to 100゚C/2hrs

Applications

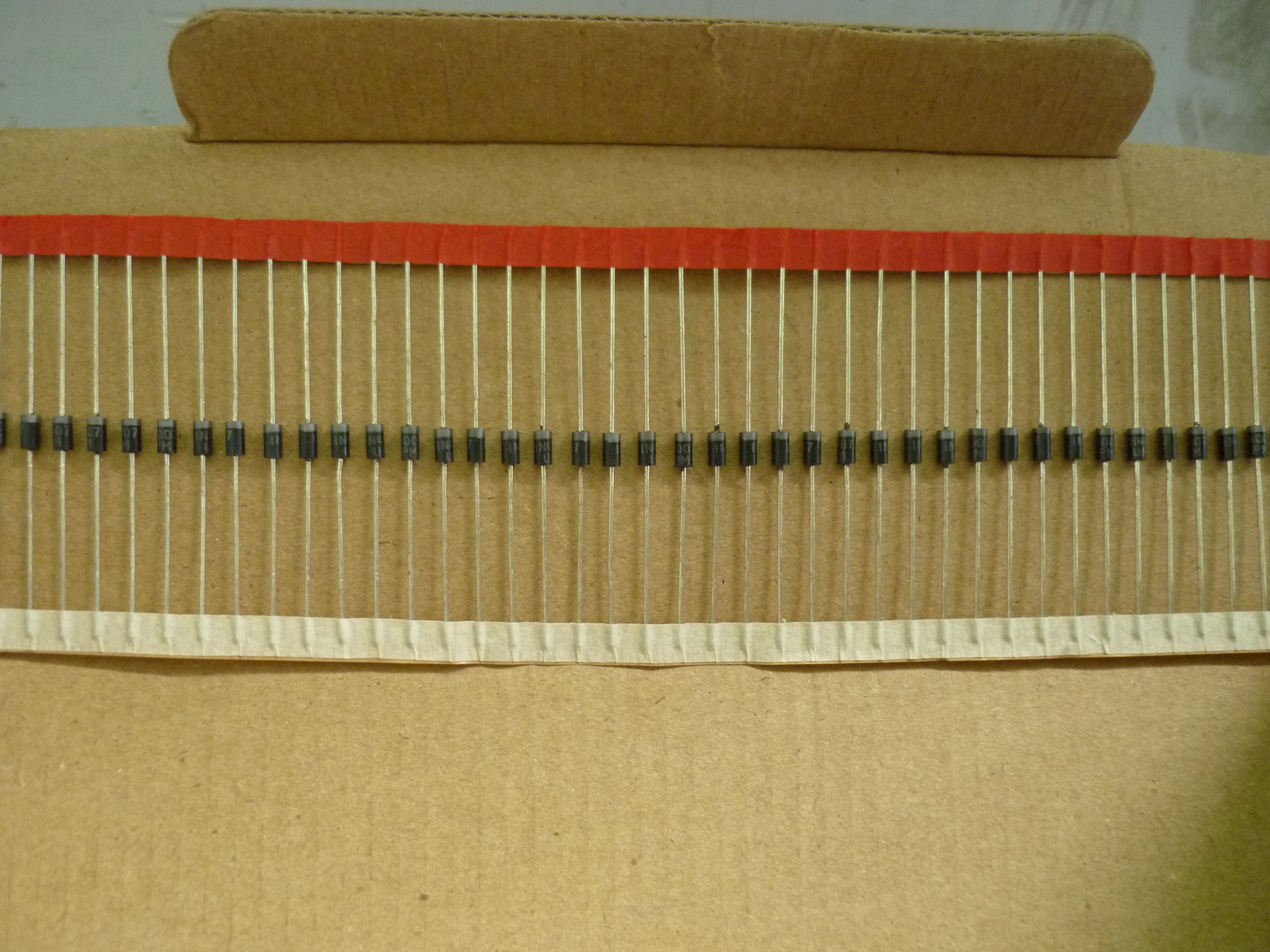

  • Applicable to diode, resistor and other electronics in the use of differentiating electronic components’ anode and cathode by using different color tapes
  • Widely used for packaging and labeling purpose

Specifications

Product Temperature resistance Color Products Form Adhesive Type Total Thickness Peel adhesion (ASTM-D100 Elongation (ASTMD-1000) Tensile strength (ASTMD-1000)
SP-100 100C X 2 hrs White,Red Jumbo,Finished roll Solvent-based natural rubber 0.16mm 800g/25mm 5% 5kg/cm
SP-110 100C X 2 hrs White,Red Jumbo,Finished roll Solvent-based natural rubber 0.16mm 800g/25mm 5% 5kg/cm
